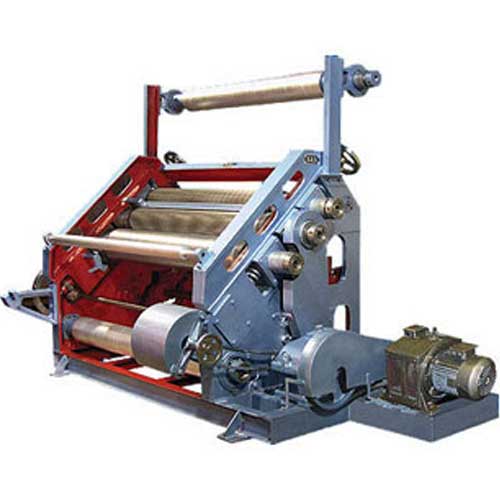

Oblique Type Paper Corrugation Machine

Send Enquiry

This Galley Machine (India) Oblique Type Paper Corrugation Machine has a considerable increase in efficiency & production over the vertical type machine. It is provided with hydraulic self-loading twin shaft reel stand.

A.C. Motor with Starter.
3 Nos. Main Heater and one Pre-heater.
Control Panel to operate heaters.
Automatic Lubrication Pump with Pipeline.
Gear Box Drive
Single Facer finger type / fingerless.
Bearing Mounted.
Production Design Speed 40Mt. /Min.
Reel Stand Self loading Hydraulic.
Rewinding attachment with 2 nos. rewinding Shafts.
Variable Speed attachment with A.C. frequency drive

Size (in)	Motor (HP)	Heating load (KW)	Floor space (in²)	Weight (MT)
32”	3	26	8” x 16”	3.5	1.5	80-140	75”
42”	5	33	8½” x 17”	4	2.0	”	”
45”	5	33	9” x 17”	4.5	2.5	”	”
52”	7.5	42	10” x 18”	5	3.5	”	”
62”	7.5	54	11” x 18”	5.5	4.0	”	80”
